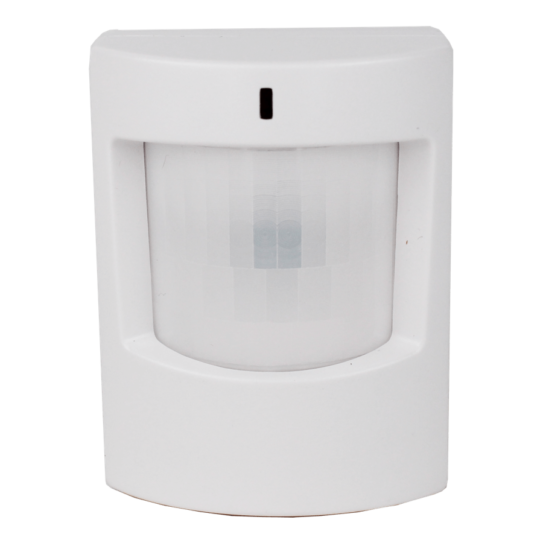

Qolsys IQ MOTION-S PIR Motion Detector

The IQ Motion-S is an encrypted PIR that is as powerful as it is affordable. Leveraging our proprietary S-Line Technology it encrypts signals sent to the IQ panel while still providing support for legacy 319.5 systems. Pet immune up to 40 pounds, the IQ Motion-S is designed to mount on a flat surface or in a corner, and at a variety of angles.

Category:

$49.00

Features

  • Encrypted S-Line sensor technology protects signals sent to the IQ Panel while still providing support for legacy 319.5 systems
  • Provides security coverage up to 35’ in a large open area
  • Use to create rules such as “When someone enters the room, turn on light” or “Trigger siren when intruder detected”
  • Pet immune up to 40 lbs

Specifications

  • Code outputs: paring, tamper, tamper restore, alarm detect motion, alarm restore, supervisory, low battery
  • Transmitter frequency: 319.5MHZ +-15KHz
  • Transmitter bandwidth: 24KHZ
  • Modulation type: ASK-OOK
  • RF output power 91.1dBuV +/- 5% at 3m
  • Sensor Range 30 ft (9.1 m) x 50 ft (15.2 m)
  • Maximum Horizontal Sensing Angle 80°
  • Operating Temperature: -10˚C~50˚C
  • Relative Humidity: 5-95%
  • Non-Condensing Storage Temperature: -40˚C to 80˚C

Additional information

Brand

Encrypted Sensor

Yes

Wireless

Yes
