DIY 2GIG Passive Infrared Motion Detectorby 2GIG
For the ultimate level of protection, no home should be without motion detectors. These convenient, sophisticated devices enhance the effectiveness of your security system by providing an invisible blanket of protection inside your home. Each wireless motion sensor is designed to detect all human movement in large open areas or rooms.
The viewing angle of a motion sensor is similar to the range of the human eye, it can cover a room approximately 40 x 40 feet. A motion sensor is perfect to cover an area with multiple openings requiring fewer door or window sensors. Remember that a motion sensor detects human movement within the room it is installed. The best designed security system would have door and window sensors on all accessible openings (full perimeter coverage). Interior motion sensors then provide secondary trap zone.
Motion Sensor Features

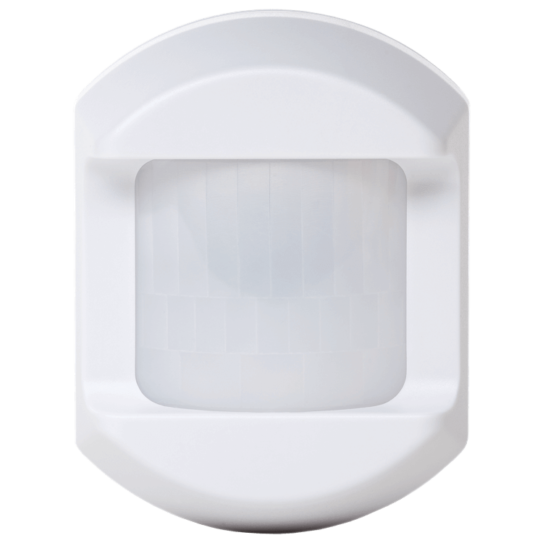

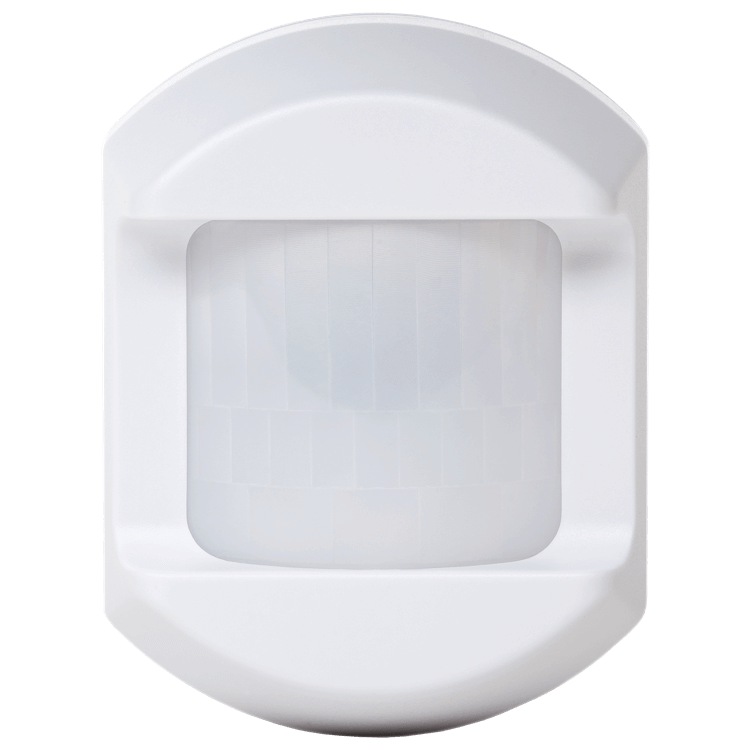

The 2GIG Passive Infrared Motion Detector (2GIG-PIR1-345) is a wall-mounted unit with wide-angle motion protection. It communicates with the control panel using the 345 MHz frequency. When set to High (HI) Sensitivity Mode, the PIR has a maximum range of 30 ft deep x 50 ft wide (9.1 m x 15.2 m). The PIR’s pet-immune feature can be set to tolerate animals up 55 lbs.
- Dual element sensor with 30 ft. by 50 ft. range
- 33 or 55 lb. pet immune
- 90-degree look down
- Lithium battery with 5 years life
- 110? spread
- 3 different mounting brackets
- Tamper protected
- Fully supervised
